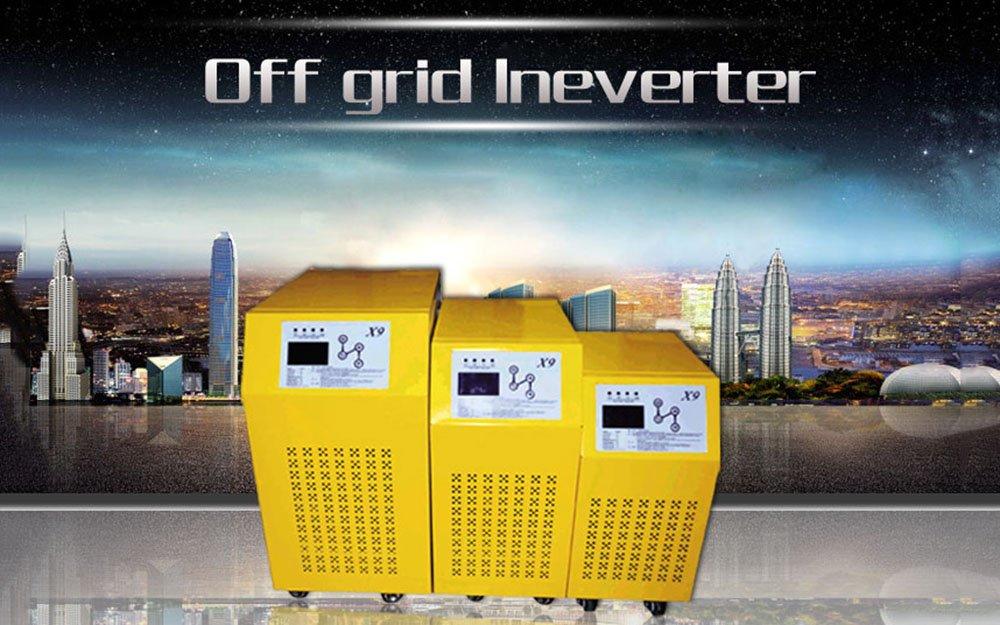

Huami Brand dc yy917s grid hybrid inverter charger
Huami Brand dc yy917s grid hybrid inverter charger
Brand
Huami
Model
X9 series
Minimum
1PCS
Payment
TT/Other
Origin
China Guangzhou
Packaging Detail
Carton Packing
OEM Service
Available
Certifications
SGS, CE, RoHS
Company Advantages
1. Offered range is appreciated among clients due to its rugged construction and high tensile strength.
2. Reliable quality can be seen in Huami with its sophisticated design. Huami Solar engages in solar controller, solar inverter, battery charger, solar panel, solar lamp and off-grid/on-grid solar system
3. Easy to install and operate, our range of solar hybrid inverter price list offers high functionality at fast speed. Our products were exported to Eastern Europe, Northern Europe, Southeast Asia, Africa, and South America.


undefined


/  Product Features


  •

    (1)pure sine wave AC output ,input and output design isolated ;


  •

    (2)LCD display , battery mode choosable ;


  •

    (3)Output power efficiency up to 85 percent ;


  •

    (4)Five working mode for choose , grid power bypass , grid power charging, solar charging, battery power first and ECO mode ;


  •

    (5)Levels of charging mould , charging current adjustable with MAX current up to 50Amp;



undefined
undefined


  •

    (6)Excellent loading ability with 3 times starting current crest ratio;


  •

    (7)Built-in by-pass relay, constant AC output, AC voltage stabilized;


  •

    (8)USB port , RS-232 work well with SNMP or other remote control;


  •

    (9)Protection against under-voltage , over-voltage ,over-load , short-circuit and over-temperature


  •

    (10)Intelligent fan for heat dissipation, more ECO to the environment ;


  •

    (11)Professional design for off grid PV system ;


  •

    (12) Built-in PWM or MPPT controller ;


  •

    (13)Power consumption less than 10W under ECO mode ; Suitable for diesel generators.


/  Five protections


Five Protections



1.Over Voltage protection
2.Over load protection
3.Over temperature protection
4.Short circuit protection
5.Under Voltage protection


/  Product Application


undefined

01 /
-
For off grid home system
undefined

02 /
-
For out door solar system
undefined

03 /
-
For camper
undefined

04 /
-
For power supply
undefined

05 /
-
Off grid solar plant for factory


/  Details show




/  Solar Inverter wiring diagram



/   product  Parameters


Other

Model X9

10212/24

15212/24

20212/24/48

30224/48

40224/48

50248/96

60248/96

Rate Capacity

1000W

1500W

2000W

3000W

4000W

5000W

6000W

Nominal battery voltage

12VDC/24VDC

12VDC/24VDC

12VDC

24VDC

48VDC

24VDC

48VDC

24VDC

48VDC

48VDC

96VDC

48VDC

96VDC

Input

DC input voltage range

10.5-15VDC(single battery voltage)

Main input voltage range

170-275VAC

Main input frequency range

45-65Hz

Protection

Battery low voltage alarm

10.5VDC(single battery voltage)

Battery low voltage protection

10VDC(single battery voltage)

Battery over voltage protection

16.7VDC(single battery voltage)

Battery over voltage alarm

15VDC(single battery voltage)

Overload protection

 110% more that rate capacity

Temperature protection

 >85℃ alarm >90℃ shut off

Output

Efficiency

≥85%

Output voltage(battery mode)

220VAC±2%,240VAC±2% 110AV±2% 120VAC±2%

Output frequency(battery mode)

50-60Hz±1%

Output wave form

Pure sine wave

Output voltage(main mode)

Stabilization output 220VAC±10%,240VAC±10% 110AV±10% 120VAC±10%

Output frequency range (main mode)

Tracking automatically

Total harmonic disortion(THD)

≤3%

Other

Transfer time

≤4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

≤42℃ fan rotate slowly ≥45℃ fan rotate fast

Environment

Operation temperature

-10°C--+ 40°C

Noise

<55dB

Display

LCD

Communication

RS232(option)

(Controller is optional part:rated current is decided customer's need

Rate charging/discharging

5A 10A l5A 20A 30A 50A

PV input voltage

Max 25V 50V 100V 200V

Temperature compensation

(Boost charging. Direct charging, float charging and charging recover voltage compensation)*

Working temperature

-20℃to +45℃;

Overload and short circuit protection

Overload protection: when current of controller is 1.25 times of rated current, controller works for 30 seconds; 1.5 times of rated current, works for 5 seconds. Short circuit protection: when current of controller is more than or equal to 3 times of rated current, protection starts.

Circuit protection

Over charging. over discharging, overload and short circuit protection

Anti connection-reverse protection for solar panel and battery

Appearance

Product

306/346*204*374/420 (wheel)

368/408*224*420/475(wheel)

430/470*290*490/540(wheel)

package size L*W*H

358*254*480mm

468*254*575mm

530*350*640mm

Weight

N.W

16.5Kg

19Kg

27Kg

27Kg

27Kg

32Kg

31Kg

41.5Kg

41.5Kg

47.5Kg

47.5Kg

53Kg

53Kg

G.W

19Kg

22Kg

31Kg

31Kg

31Kg

36Kg

35Kg

46Kg

46Kg

52Kg

52Kg

57.5Kg

57.5Kg






Company Features
1. Huami Solar Is A hybrid inverter charger Manufacturer, Who Develops New hybrid on grid inverter, solar hybrid inverter price list Products Constantly To Grasp Market Trends. We Are Looking Forward To Hearing From You.
2. Guangzhou Huami Solar Power Co.,ltd has full advanced production facilities for hybrid off grid inverter production.
3. To implement sma hybrid inverter is the base of Guangzhou Huami Solar Power Co.,ltd's work.
