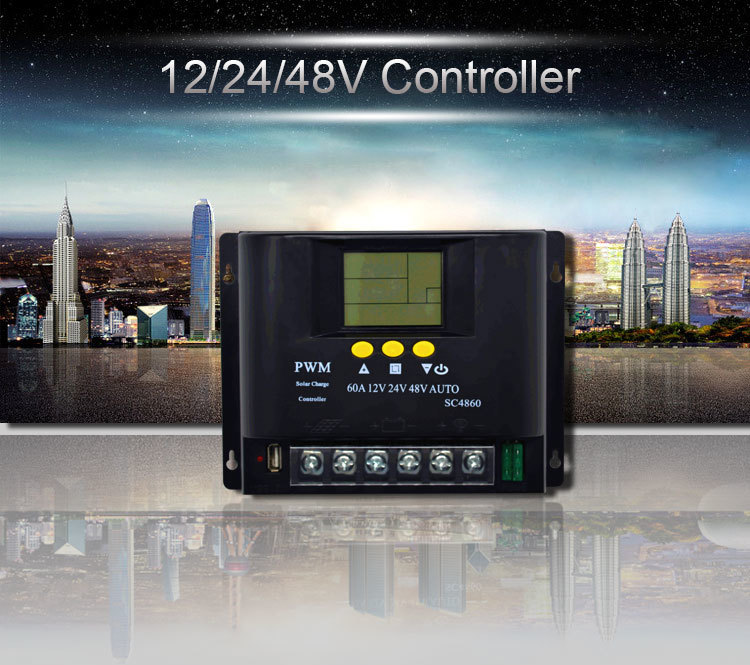

12V/24V/48V 60A LCD PWM Solar Charge Controller SYC4860
12V/24V/48V 60A LCD PWM Solar Charge Controller SYC4860
Model
SYC4860
Minimum
1PCS
Payment
TT/Other
Origin
China Guangzhou
/  Product main pictures


undefined
undefined
undefined


Description of product function

The product is mufti-functional LCD solar controller with clock display and seven operating modes that are charging mode, light control mode, light and time delay control mode, universal control mode, manual control mode, timing control mode and testing mode. Among them, test mode is only applicable to the factory test.
Charging control is applicable to any mode, as long as the charging condition is reached, it can charge immediately.

Discharge control varies as different control modes change, under the trouble-free condition, specific instructions as follows:


  •

    1.Charging mode: in any case, never discharge.


  •

    2.Light control mode: when the controller detects nights, it will delay ten minutes then start to discharge; when it detects daytime, it will delay ten minutes then stop discharging.


  •

    3.Light and time delay control mode: when the controller detects nights, it will delay ten minutes then start to discharge and count down, if the timer stops by zero, discharge will stop. The longest duration of delay is 23:59.


  •

    4.Universal control mode: under the trouble-free condition, it always keep discharging.


  •

    5.Manual control mode: it uses “▼” for discharging or not.


  •

    6.Timing control mode: it opens or closes the discharge regularly.


undefined


  •

    7.Test mode: it is the same as light and time delay control mode but only loses ten minutes of time delay.


  •

    8.The controller still discharges under low voltage protection. Touch-holding “▼” for 5 seconds, discharge continues to output. But discharge is only stopped by hand.


  •

    9. Notice that this performance may damage the battery, be careful with it!



/  Protection function




Reverse polarity protection

Function: The connection of Positive and negative cable fault, then enter automatic protection status: blown fuse

short-circuit protection

Function: automatic protection status when short circuit   stop working

Over-charge protection

Function: over current then enter automatic protection status: auto stop

Over-discharge protection

Faction: over discharge then enter automatic protection status: auto stop

Not only four protection function , but also including

1). Open Circuit Protection :When open circuit controller will protect the components

2). Over Current Protection :When over current controller will cut off to protect the equipment


undefined

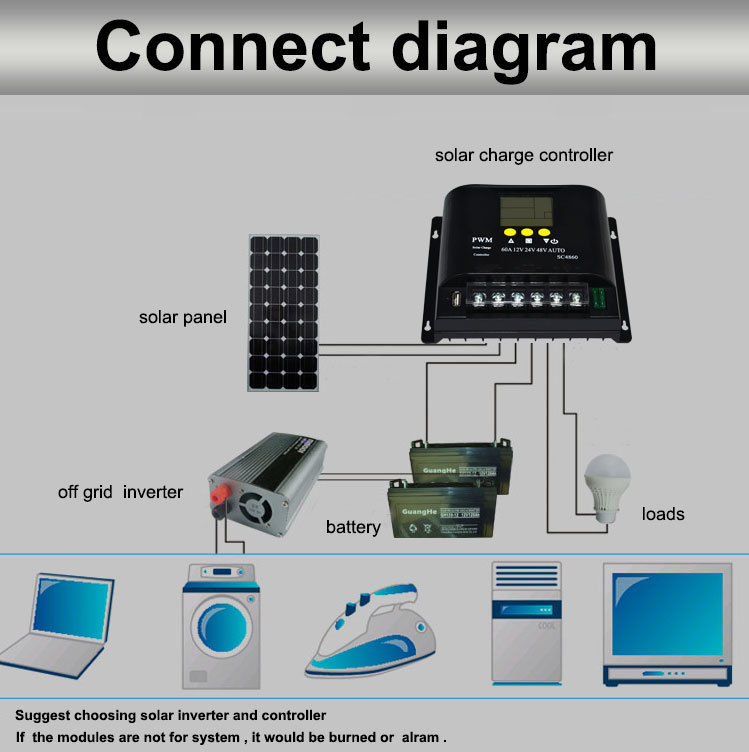

Suggest choosing solar inverter and controller .

If the modules are not for system , it would be burned or alarm .



/  details of of products


undefined
Quality USB for cell phone and lamps electronic charging
undefined
Two safely fuse to protect controller


undefined
undefined


undefined

undefined


/  Internal details


undefined
Imported IC component


Safe, simple , convenience
New terminal design
Efficiently thermolysis
Effectively extend the service life


undefined
Humanization Design


More convenient
High quality


undefined
Imported PC material


Inflaming retarding shock resistance
High performance anti-aging component.


/  Application


undefined


/   product  Parameters


Model

Specification

Size

Package Size

G.W

Package

SYC2480

12V/24V 80A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC24100

12V/24V 100A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC4860

12V/24V/48V 60A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC4880

12V/24V/48V 80A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC48100

12V/24V/48V 100A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC9620

96V20A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC9630

96V30A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC9640

96V40A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC9650

96V50A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn

SYC9660

96V60A LCD solar charge controller

200*200*70mm

430*420*360mm

20kg

20pcs/ctn


Rated Voltage

12V/24V/48V

Low Voltage Disconnection (LVD)

10.7V/21.4V/42.8V

Float Voltage

13.7V/27.4V/54.8V

Low Voltage Re connection (LVR)

12.6V/25.2V/50.4V

Charging mode

PWM mode
