12V/24V 10A LED PWM Solar Charge Controller HM-1024
12V/24V 10A LED PWM Solar Charge Controller HM-1024
Model
HM-1024
Minimum
1PCS
Payment
TT/ L/C, PayPal, western union
Origin
China Guangzhou
/  Product main pictures


undefined
undefined
undefined
undefined


undefined
undefined
undefined


/  Product feature


  •

    1.Build-in industrial micro controller.


  •

    2.Big LCD display,all adjustable parameter.


  •

    3.Fully 4-stage PWM charge management.


  •

    4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.


  •

    5.Dual mosfet Reverse current protection ,low heat production.


What’s main protection function does HM1024 series have ?

1.short-circuit protection
2.Over-current protection
3.Open-circuit protection
4.Over-charge protection
    5.Over-discharge protection
      6.Reverse connect protection

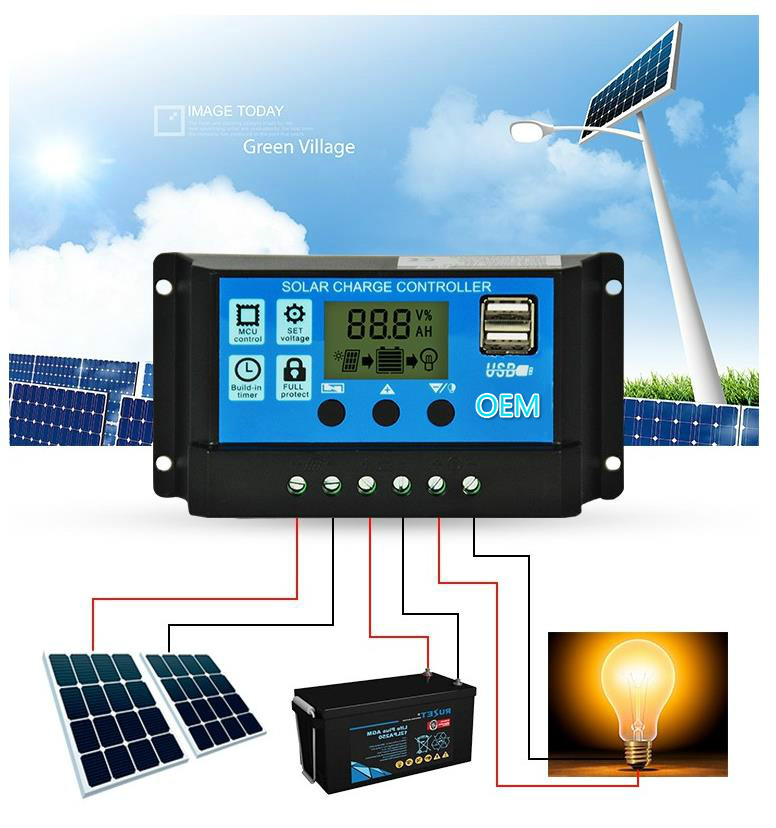

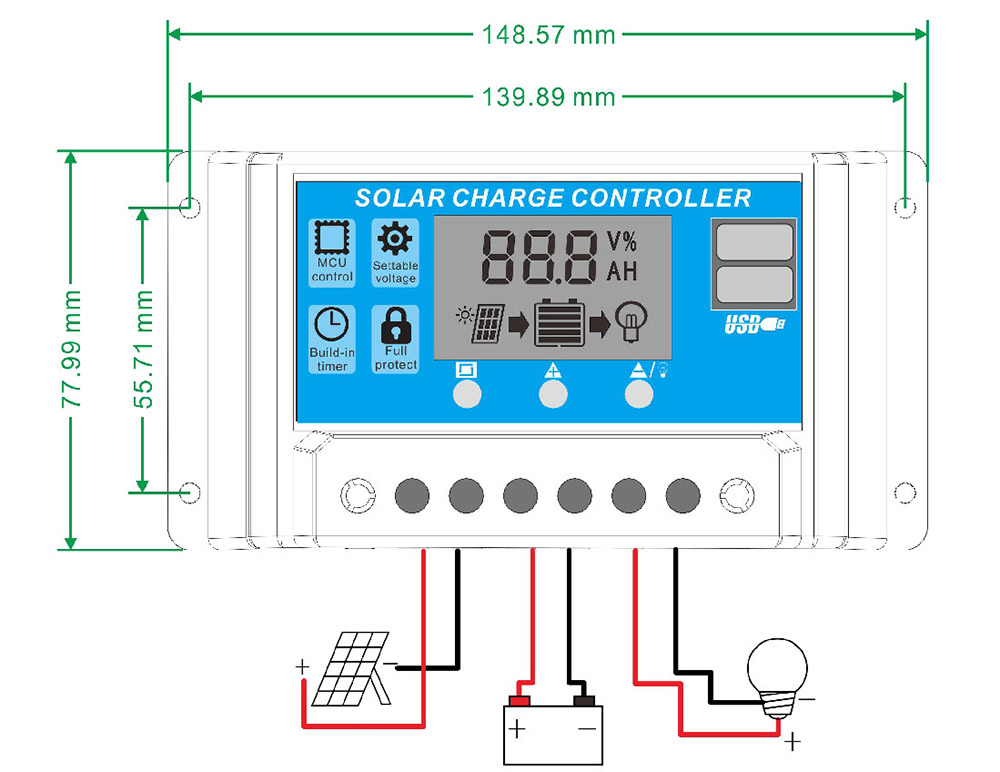

/  Hm-1024 controller connect diagram


undefined



1. Connect the battery to the charge regulator - plus and minus.

2. Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.



/   product  Parameters


MODEL

HM-1024

Battery voltage

12V/24V auto

Charge current

10A

Discharge current

10A

Max Solar input

<50V

Equalization

B01 sealed

B02 Gel

B03 flood

14.4V

14.2V

14.6V

Float charge

13.7V(default,adjustable)

Discharge stop

10.7V(default,adjustable)

Discharge reconnect

12.6V(default,adjustable)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35~+60 ℃

Size/Weight

150*78*35mm /150g


/   product  Application
